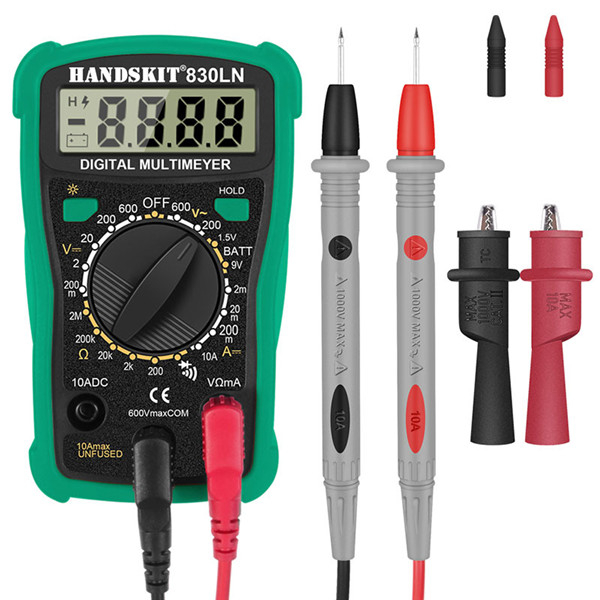

Handskit 830LN Digital Multimeter AC/DC Ammeter Voltmeter Meter Ohm Tester
SKU
14558
$10.90
In stock
Handskit 830LN AC/DC multimeter with backlight LCD
Sampling rate about 3 times per second
Over range indication:the highest bit was 1
Working environment:0-40 degree
Power:3V battery
Sampling rate about 3 times per second
Over range indication:the highest bit was 1
Working environment:0-40 degree
Power:3V battery
Order 10+ enjoy fast free shipping 6-9 days
- Buy 10 for $10.00 each
- Buy 50 for $9.40 each
- Buy 100 for $8.90 each
- Buy 300 for $8.20 each
Category: Tools
Measurement Ranges & Accuracy:
-DC Voltage:
Range | Resolution | Accuracy |
200mV | 100µV | ±（0.5%+4） |
2V | 1mV | |
20V | 10mV | |
200V | 100mV | |
500V | 1V | ±（1.0%+5） |
Input impedance:All the range is 1 MΩ
-AC Voltage:
Range | Resolution | Accuracy |
200mV | 100µV | ±（1.2%+10） |
500mV | 1V |
Input impedance:1 MΩ
Frequency response:(40-200)Hz
DC Current:
Range | Resolution | Accuracy |
20µA | 0.01µA | ±（1.5%+3） |
200µA | 0.1µA | |
2µA | 1µA | |
20mA | 10µA | |
200mA | 100µA | |
20A | 10mA | ±（2.0%+3） |
Resistance:
Range | Resolution | Accuracy |
200Ω | 0.1Ω | ±（1.0%+5） |
2KΩ | 1Ω | ±（0.8%+3） ） |
20KΩ | 10Ω | |
200KΩ | 100Ω | |
2MΩ | 1KΩ | ±（1.0%+15） |
Over load protection:250 Ω dc and ac peak
